If they do not confirm I will return the moniter.ĭoes anyone know how to recognize the panel in R "lottery" version? i complained and inquired Samsung UK as well as PCWORLD.

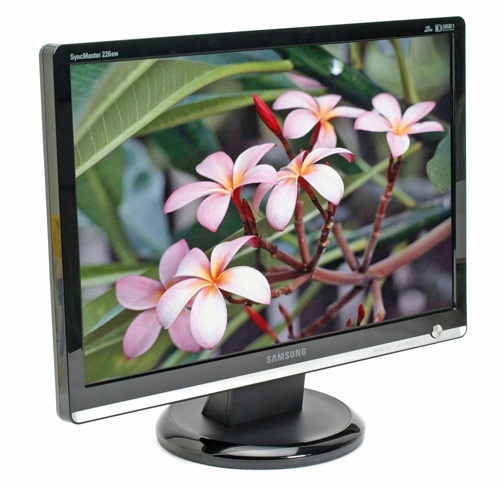

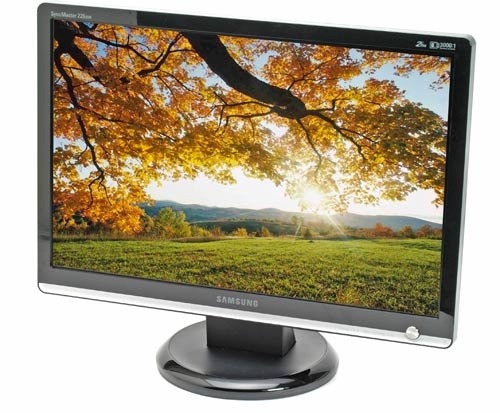

There is a rumour that new units are exclusively s versions but I don't know Samsund has confirmed that.īut I do not like to be kept in darkness. So subjectively this should be an S panel. Black background does not show H back light bleeding and there is mild bleeding on top and lower borders. There is no bluish hue and it is greyish white. I have gone through so many forums and sources and there is no logical way of ascertaining the panel on this R version!!Īs suggested in somewhere else I set contrast and brightness to 0 in custom mode to see a white background. Service menu has no information regarding panel version. Its manufactured in Slovakia in June 2007. My monitor label says its 226BW (R) and CODE LS22MEWSFV/EDC. If you already placed the order, then it's ok but your monitor will last long with capacitors with better life rating.I bought a 226BW from PCWORLD UK after they assured me sending an S panel.Īlthough PCWORLD assured me sending an S panel, I am so disappointed to see Samsung has removed panel information from the model label and service menu. KZE 680uF /35v 12.5 x 20 : (higher voltage is fine, you have room on board for 12.5mm) Why 3 pcs of some capacitors in that order?Ĩ20uF 25v, first is 20mm tall, next 2 are 10x25 Test it out, if they do, you can always put them on the board horizontally, you have room there. They're 820uF 25v FMis 10x25 mm, but i'm pretty sure they fit without touching the top case. Save some money or put the difference into getting FM or FR capacitors. It's unlikely the large 450v capacitor has issues. You have the room for those.įC will work but only just, it's kind of lousy with life rating, something like 2000 hours 105c compared to 6000-8000 hours 105c
No, stick to FM or FR for those 25v rated capacitors. Also I decided to get EEU-FC1E821S instead of the EEU-FM1E821L as its 5 mm shorter. Is this list suitable for me?Ĭ107 47uF 50v GL 105 ☌ C640 VENT 5mm D x 10mm H EEU-FC1H470Ĭ110 820uF 25v GL 105 ☌ C646 VENT 10mm D x 20mm H EEU-FM1E821L *Ĭ111 820uF 25v GL 105 ☌ C646 VENT 10mm D x 20mm H EEU-FM1E821L *Ĭ112 330uF 25v GL 105 ☌ C638 VENT 10mm D x 15mm H EEU-FM1E331Ĭ301 680uF 25v GL 105 ☌ C650 VENT 10mm D x 17mm H EEU-FM1E681Ĭ302 680uF 25v GL 105 ☌ C650 VENT 10mm D x 17mm H EEU-FM1E681Įdit: I added a screenshot of the Mouser shopping cart, if someone could take a look and see that I'm doing things right. His list seems to be identical to mine but his contains item IDs for purchases. On the old forum post I found this list here from someone named Plainbill. There were 2 possibly 3-4 bad capacitors on the board. Was a bit frustrating to do but I eventually got there.
